TEMPERATURE, HUMIDITY, CO2 AND VOC SENSORS

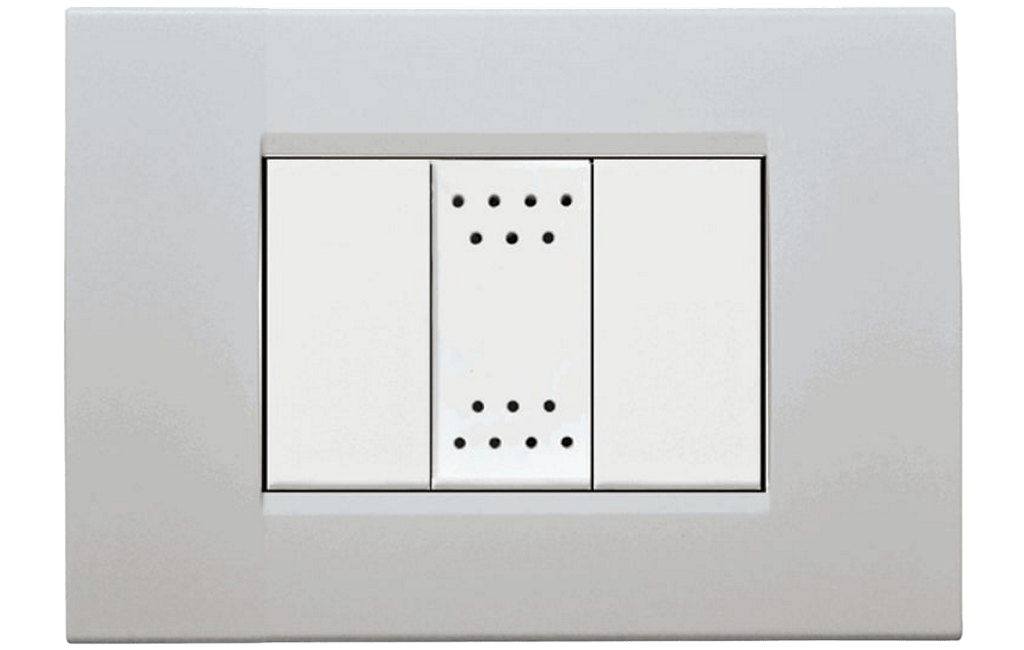

TEMPERATURE AND HUMIDITY PROBE
Microprocessor active sensor for measuring ambient temperature and relative humidity.
The temperature and humidity probes are compatible with the main domestic box built-in series 502/503.
Each sensor has its own address, allowing the simultaneous use of multiple sensors on the same communication bus (Modbus RTU).
The probes are connected to the TSH or TST control unit via the Modbus interface.
- Modbus interface.
- Cover for the most common civil series.
- 24VDC power supply.
TEMPERATURE AND HUMIDITY PROBE WITH RELE’
- Relay board with microprocessor active sensor for measuring ambient temperature and relative humidity.
- ModBus RTU (RS485) protocol.
- Prepared for control via iOS or Android smartphone.
- Installation in 503 box.
- Available without cover or with cover upon request of the desired civil series at the time of order.

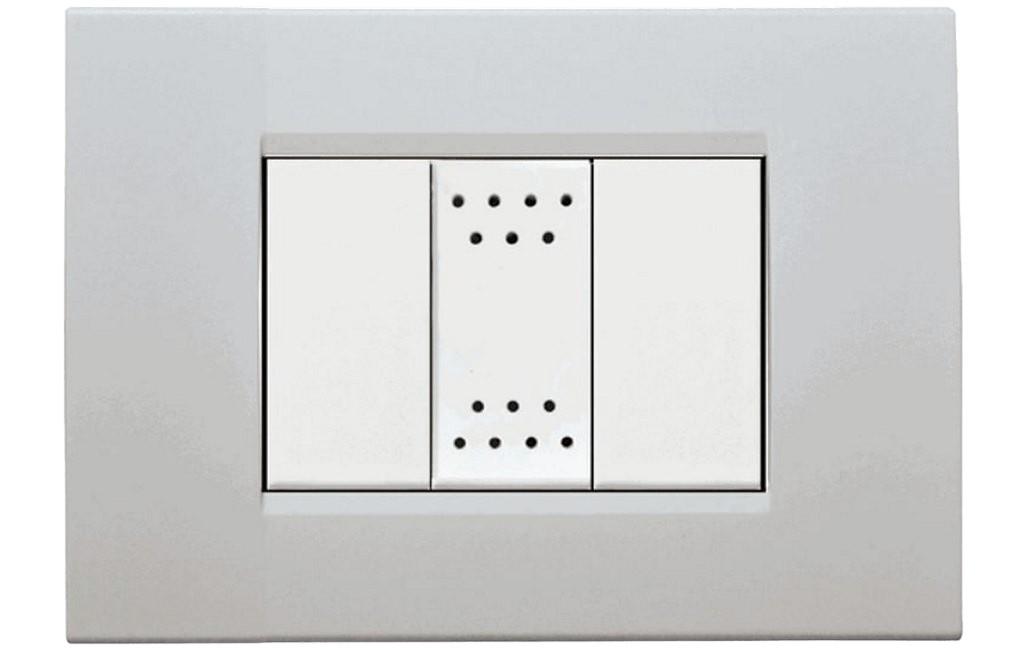

TEMPERATURE, HUMIDITY AND VOLATILE ORGANIC COMPOUNDS SENSOR
Sensor for detecting the main parameters of the indoor environment.
For this purpose, air humidity, temperature, and the presence of total volatile organic compounds (tVOC) are measured.
The tVOC value indicates air quality according to EU regulations.
The quality index can be used to regulate heating, ventilation, and air conditioning (HVAC) systems.
In this way, EU recommendations for proper ventilation of indoor environments are respected.
Vimar Plana Serie
Vimar Linea Serie
Vimar Idea Serie
Vimar Arkè Serie
Vimar Eikon Serie
Urmet Flexa
BTicino Axolute
BTicino Magic
BTicino Living Now
BTicino Living Light Tech
BTicino Living Light
BTicino Matix
BTicino Matix Go
Gewiss System White
Gewiss Chorus
AVE serie S44
ABB Elos Serie
Generic Hole Cover
ABB Chiara Serie
Room probe TH
| PRODUCT | CODE | DESCRIPTION |
|---|---|---|
| Temperature/Humidity probe for TSH and TST control units. | SND-THT | Modbus interface for control via climate control units and APP. Flush mounting 502/503. Integrated with the hole covers of the most common civil series. 24VDC power supply. |
| Temperature/Humidity probe for compact SCIOxxx control units. | SND-TH-LIGHTT | Modbus interface. APP control. Flush-mounted on 502/503 box. Integrated with the hole covers of the most popular civil series. Relay output. 24VDC power supply. |
Room probe TH with relè
| PRODUCT | CODE | DESCRIPTION |
|---|---|---|
| Temperature/Humidity room probe with relay for TSH and TST Control Units. | SND-THRT | Temperature and humidity sensor. Modbus interface for control via climate control units and APP. Flush mounting on 502/503 box. Integrated with the hole covers of the most common civil series. Relay output. 24VDC power supply. |
| Temperature/Humidity room probe with relay for SCIOxxx Control Units. | SND-THR-LIGHTT | Temperature and humidity sensor. Modbus interface for control via climate control units and APP. Flush mounting on 502/503 box. Integrated with the hole covers of the most common civil series. Relay output. 24VDC power supply. Accuracy +/- 0.3°C +/- 2% RH. |
Room probe THVOC
| PRODUCT | CODE | DESCRIPTION |
|---|---|---|
| T/H/VOC room probe for TSH/TST control units. | SND-TH-VOCT | Temperature Humidity and Volatile Organic Compounds (CO2-eq) Probe. T/H/VOC Sensor. Modbus interface for control via climate control units and APP. Flush mounting on 502/503 box. Integrated with the hole covers of the most common civil series. 24VDC power supply. |
Hole Cover
| PRODUCT | CODE | DESCRIPTION |
|---|---|---|
| ABB Elos series hole cover | COP-ABB-ELOS-T | ABB Elos cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| ABB Chiara series hole cover | COP-ABB-CHIARA-T | ABB Chiara cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| AVE S44 Series hole cover | COP-AVE-S44-T | AVE S44 cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Bticino Matix series white hole cover | COP-MAT-T | Bticino Matix White cover for T, TH, THR and VOC room probes. Mounting on 502/503 box. |
| Bticino Living Now series hole cover | COP-LIV-NOWT | Bticino Living Now cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Bticino Living Light Tech series hole cover | COP-LIV-LIGHT-TECT | Bticino Living Light Tech cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Bticino Living Light series hole cover | COP-LIV-LIGHT-T | Bticino Living Light cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Bticino Matix-Go series hole cover | COP-BTIC-MATIXGO-LT | Bticino Matix Go cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Bticino Axolute series hole cover | COP-BTIC-AXOL-T | Bticino Axolute cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Bticino Magic White series hole cover | COP-BTC-5000-T | Bticino 5000 Magic White cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Generic Hole Cover | COPT | Generic cover for T, TH, THR e VOC room probes Mounting on 502/503 box. |
| Gewiss System white series hole cover | COP-GEW-T | Gewiss System White cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Gewiss Chorus series hole cover | COP-GEW-CHO-T | Gewiss Chorus cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |
| Urmet/Flexa series hole cover | COP-URM-SIM-T | Urmet/Flexa hole cover for T, TH, THR and VOC room probes. Mounting on 502/503 box. |
| Vimar Plana series hole cover | COP-VIM-PLA-T | Vimar Plana cover for T, TH, THR and VOC room probes. Mounting on 502/503 box. |
| Vimar Linea series hole cover | COP-VIM-LINEA-T | Vimar Linea cover for T, TH, THR and VOC room probes. Mounting on 502/503 box. |
| Vimar Idea series hole cover | COP-VIM-IDEA-T | Vimar Idea cover for T, TH, THR and VOC room probes. Mounting on 502/503 box. |
| Vimar Arkè series hole cover | COP-VIM-ARKE-T | Vimar Arkè cover for T, TH, THR and VOC room probes. Mounting on 502/503 box. |
| Vimar Eicon series hole cover | COP-EIK-T | Vimar Eikon cover for T, TH, THR e VOC room probes. Mounting on 502/503 box. |

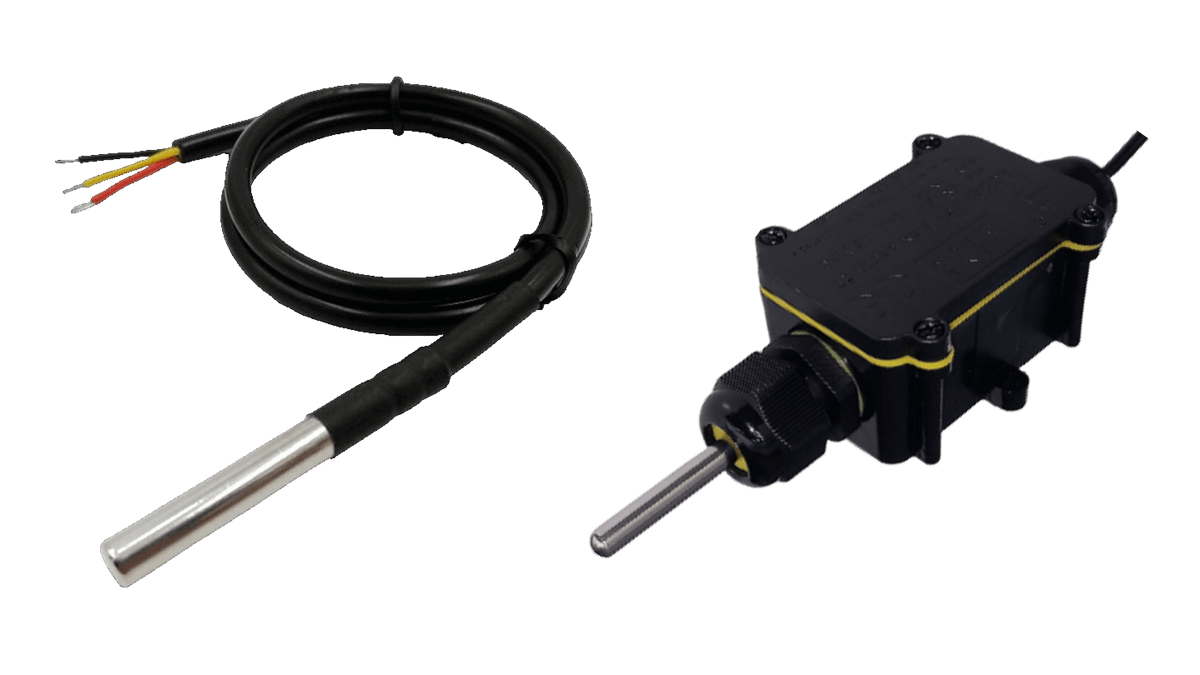

T-PROBE 1-WIRE
Digital temperature sensors for pipelines.
Suitable for programmable TSH/TST control units and for Compact I/O Modbus expansion modules.
These sensors are capable of measuring temperatures between -55 and 125°C with an accuracy of ± 0.5.
Each sensor is encoded with a unique 64-bit address that allows the simultaneous use of multiple sensors on the same communication bus.
| PRODUCT | CODE | DESCRIPTION |
|---|---|---|
| Digital well T probe. | SND-POZT | Compatible with TSH/TST control units and with CIOT module. It is able to perform temperature measurements between -55 and 125°C with an accuracy of ± 0.5. Each sensor is coded with a unique 64-bit address. |
| Outdoor box for T-Probe | SND-EXT | Watertight container. |

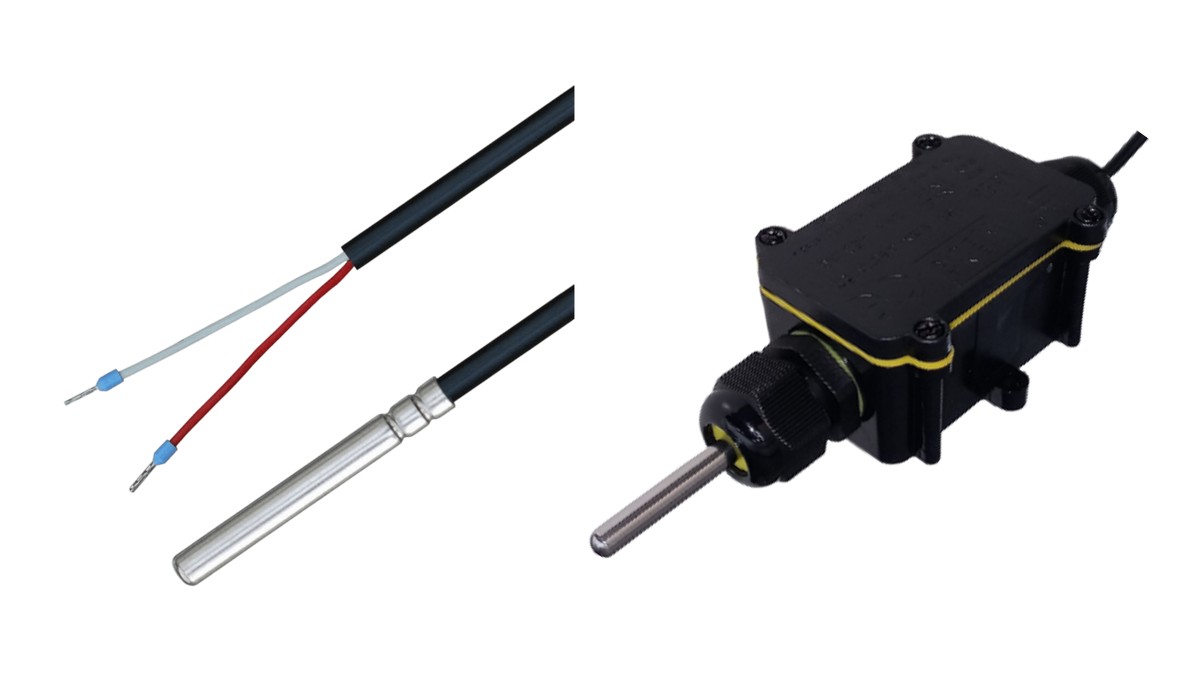

PT1000 TEMPERATURE PROBE
Temperature probe for plug & play Smart Central/Smart Compact control units (SCIOCENT and SCIOCOMT) and for Minitouch thermostats.
| PRODUCT | CODE | DESCRIPTION |
|---|---|---|
| PT1000 temperature probe for well. | SND-PT1000T | Compatible with SCIOxxx compact control units and with Minitouch thermostat. 2 meter PVC cable. 105°C temperature sensor. Memory sensor. Probe and heating. |
| Outdoor box for PT1000 probe | SND-PT1000-EXT | Watertight container. |
