SCOPE OF USE
The new Termogea solution for remotely controlling condominium heating systems and large centralised systems.
AUDIENCE
The Remocity Kit is designed for TAS, maintenance technicians, condominium administrators, and companies that manage multiple real estate units. These professionals will be able to remotely turn on, turn off, and monitor heating systems. The Remocity Control Unit is connected to the Termogea Cloud and allows remote control via smartphone, tablet, or PC.
This system is designed to save time and costs in managing condominium heating systems.
STRENGTHS
FULL REMOTE CONTROL
ON SITE TRAVELS ELIMINATED
REDUCED MANAGEMENT COSTS
PLUG & PLAY INSTALLATION
SYSTEM PORTABILITY
REAL-TIME ALARMS
TIMELY MAINTENANCE
REMOTE SEASON CHANGE
SWITCHING ON/OFF HEATING SYSTEM
REMOCITY KIT WITH TERMOGEA CLOUD SYSTEM INCLUDED
COMPONENTS INCLUDED
Remocity control unit
Router
Power supply
Delivery probe
OPTIONAL CONFIGURATIONS
Return probe
External probe
2 Circulator control
Dehumidifier control
MIXING VALVE CONTROL

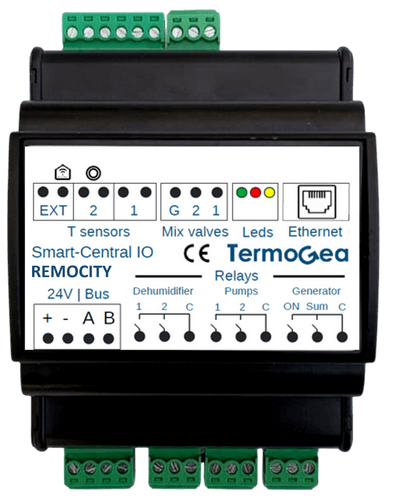

THE REMOCITY CONTROL UNIT
FEATURES
24V Power supply.
6 Outputs (relays).
2 0-10V Outputs.
3 Input for PT1000 temperature probes.
DIN rail mounting (4 modules).
Termogea cloud connection via Modem/SIM.
Data sends every 2 minutes to the cloud.
REMOTE MANAGEMENT OF THE HEAT PUMP AND THE SYSTEM

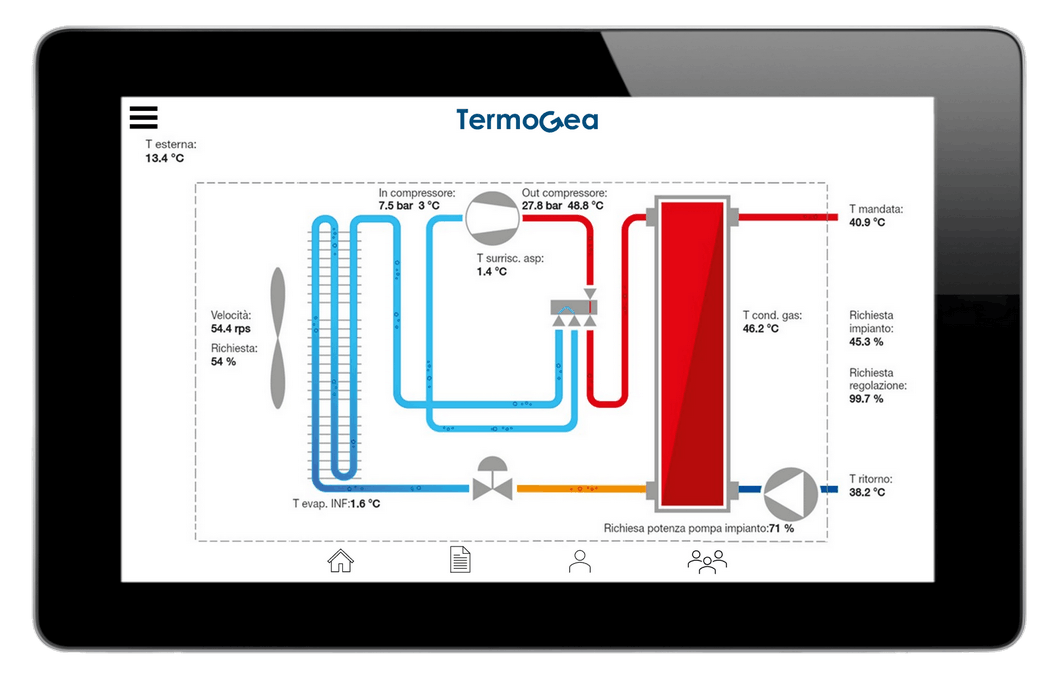

CENTRAL HEATING PLANT SYNOPTIC

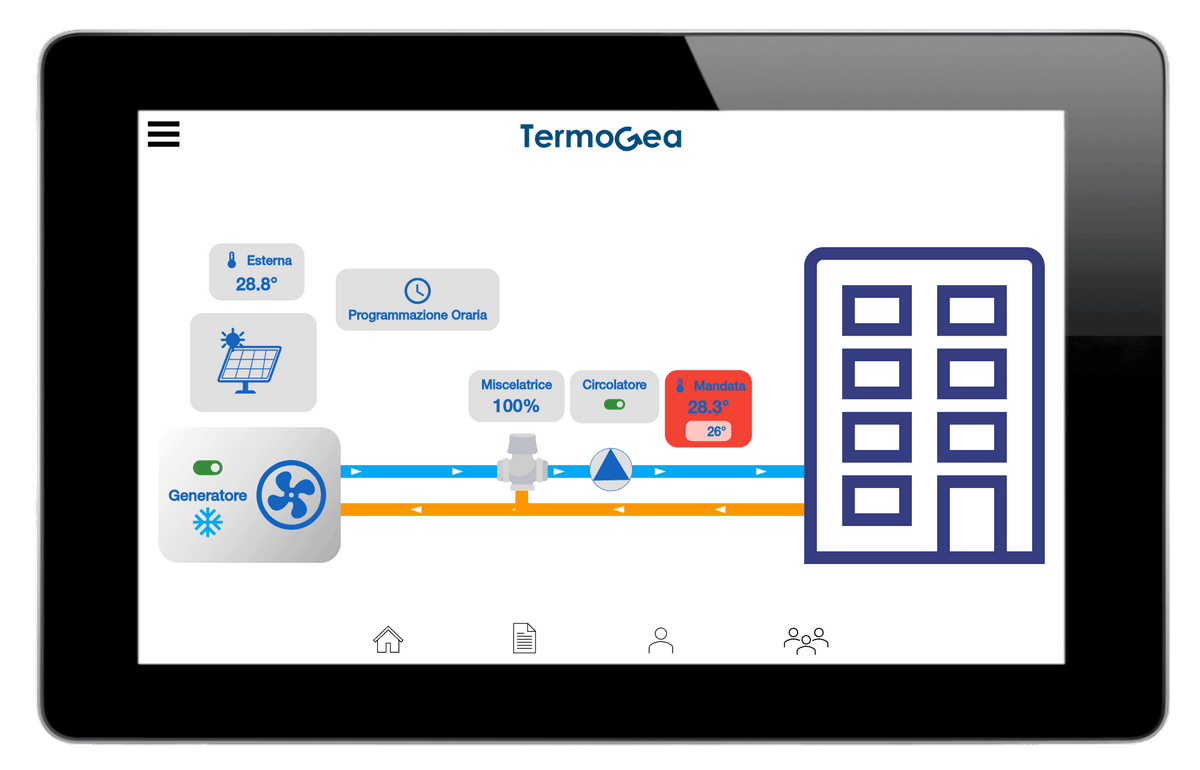

CENTRALISED SYSTEM SYNOPTIC
Valve opening and closing test.
Opening and closing of mixing valves in district heating systems.
Generator, circulator, and valve alarms in real time.
Configuration of temperature alarm thresholds with a history of the last two years.
Activity status of the valves and circulation pumps.
Monitoring of the supply and return probe temperatures and external temperature, with a historical record of data from the past two years.
Export of data in JSON, CSV and XLSX format.
System overview display, as well as one for the heat pump.
Annual scheduling for the heating plant.
Flow temperature alarm when above or below the user-configured threshold.
Separate start-up and shutdown of the heat pump and circulator:
Start-up – Circulator starts first –> heat pump starts after x configurable minutes.
Shutdown – Heat pump shuts down first –> circulator shuts down after x configurable minutes.

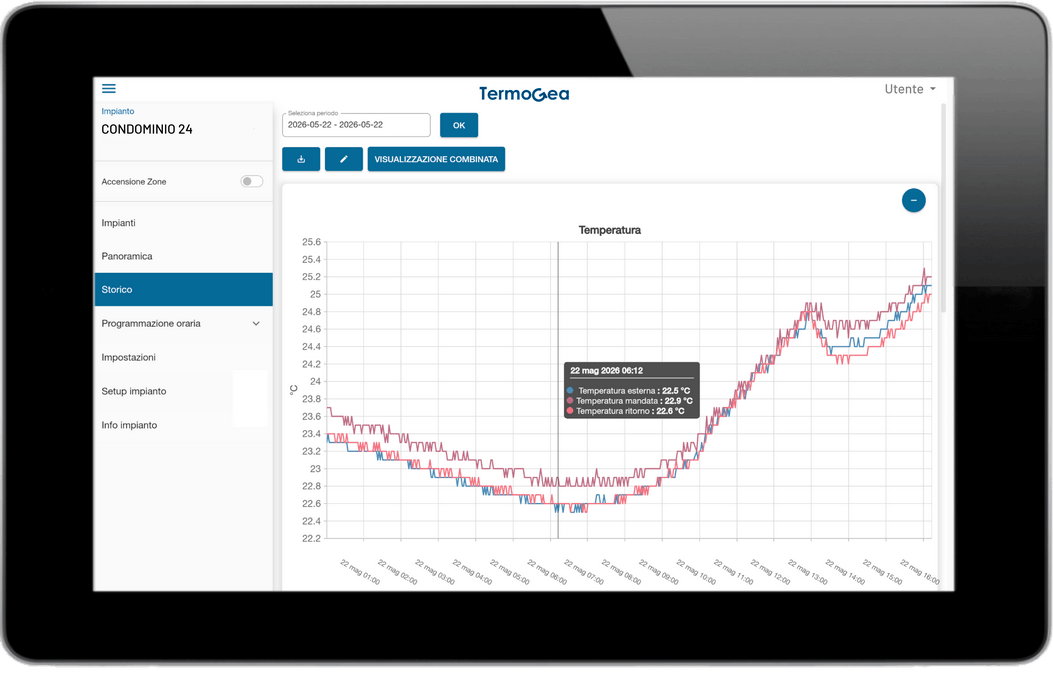

TEMPERATURE HISTORY

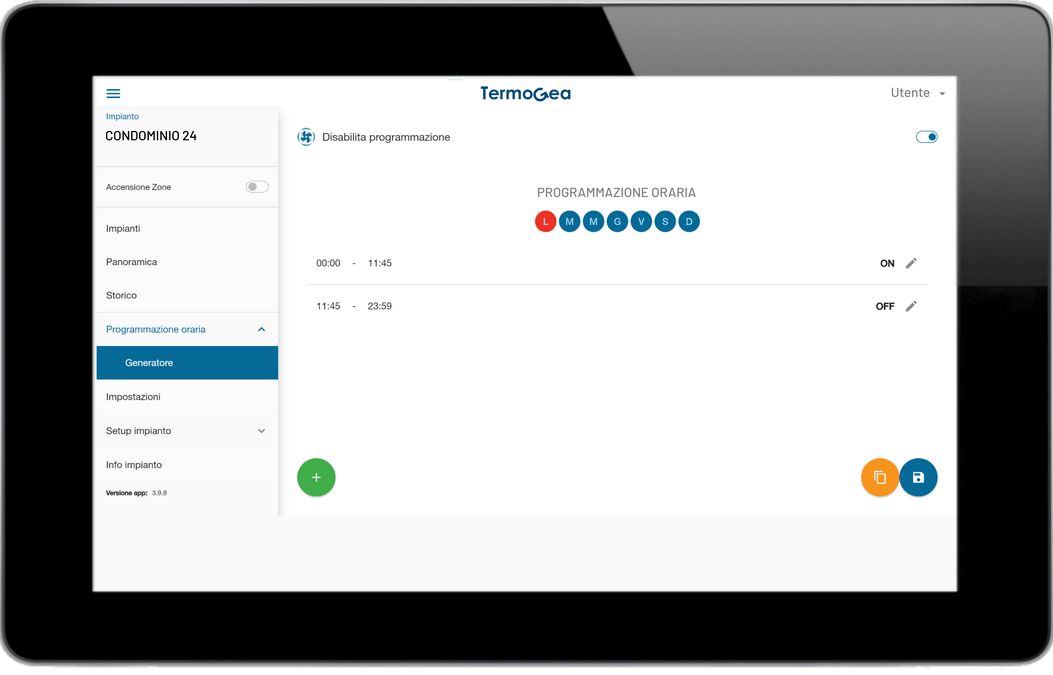

GENERATOR HOURLY SCHEDULING

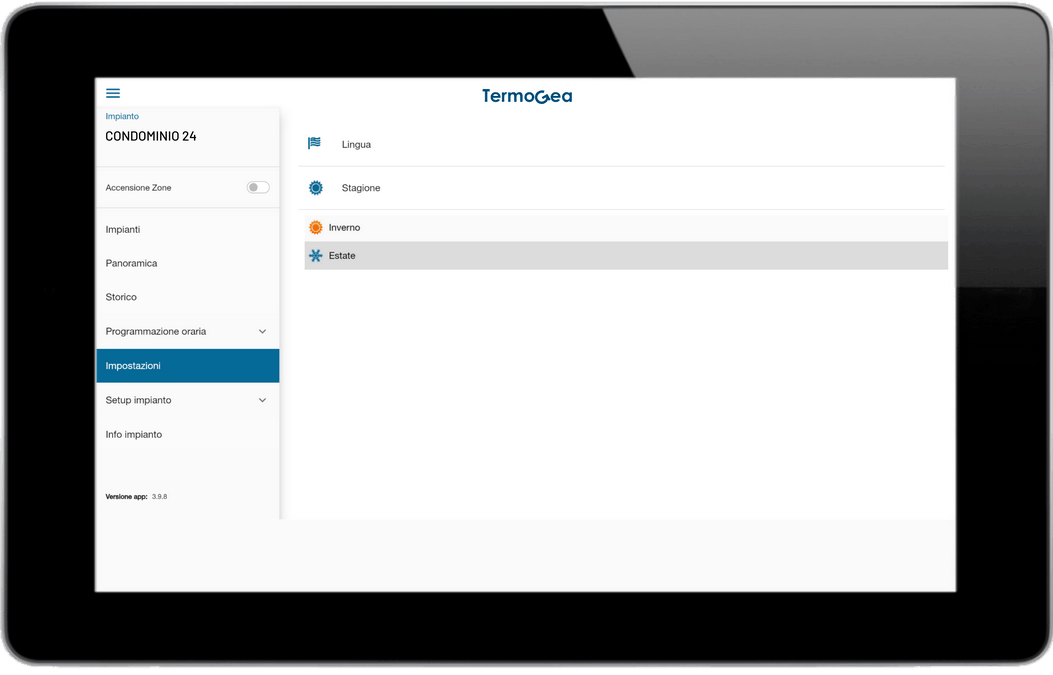

SEASON CHANGE SYSTEM

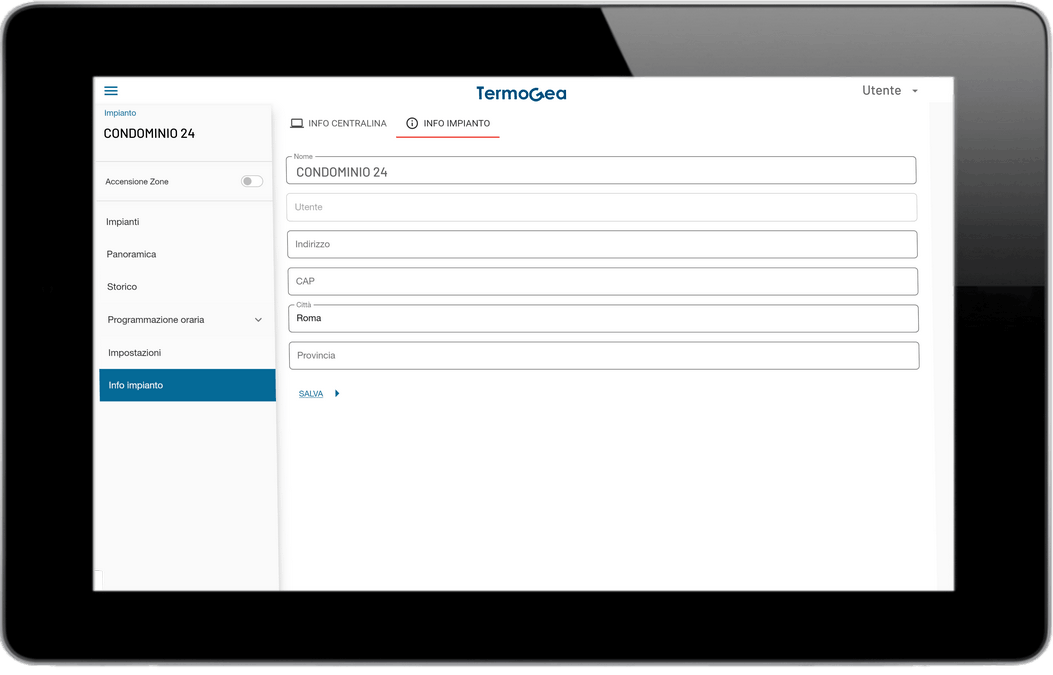

CONDOMINIUM REGISTRY

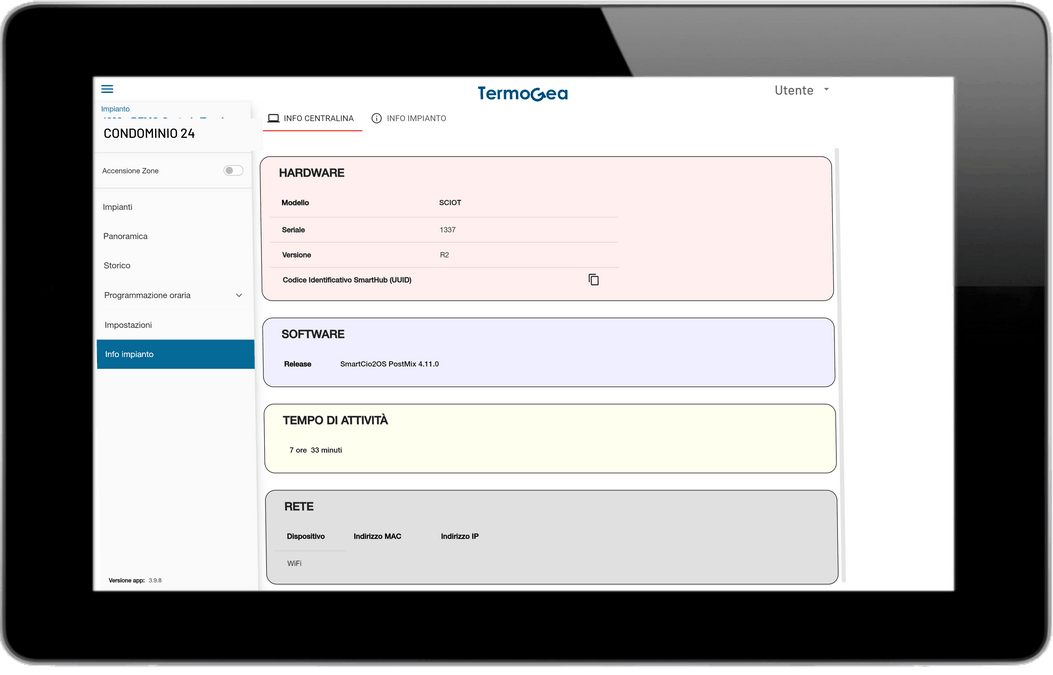

CONTROL UNIT INFO
THE REMOCITY SYSTEM
PLUG-AND-PLAY INSTALLATION
The Remocity system is plug-and-play, requires no configuration, and can manage any type of generator, heat pump, or traditional boiler. The system configures itself automatically upon initial startup. Remocity automatically detects the number and type of probes/thermostats used.
PORTABILITY
You can take the system already installed in one building and bring it to another without reactivating your cloud account or mobile network connection.
