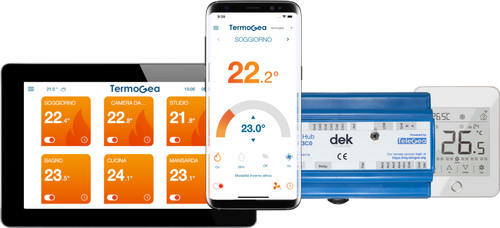

These Termogea kits offer three solutions for controlling temperature, humidity and air quality in radiant systems.
The user can control the radiant system in three ways: with just a smartphone (Easy Solution), with a centralized thermostat + smartphone (Touch Solution), and with a zone thermostat + smartphone (Room Solution).

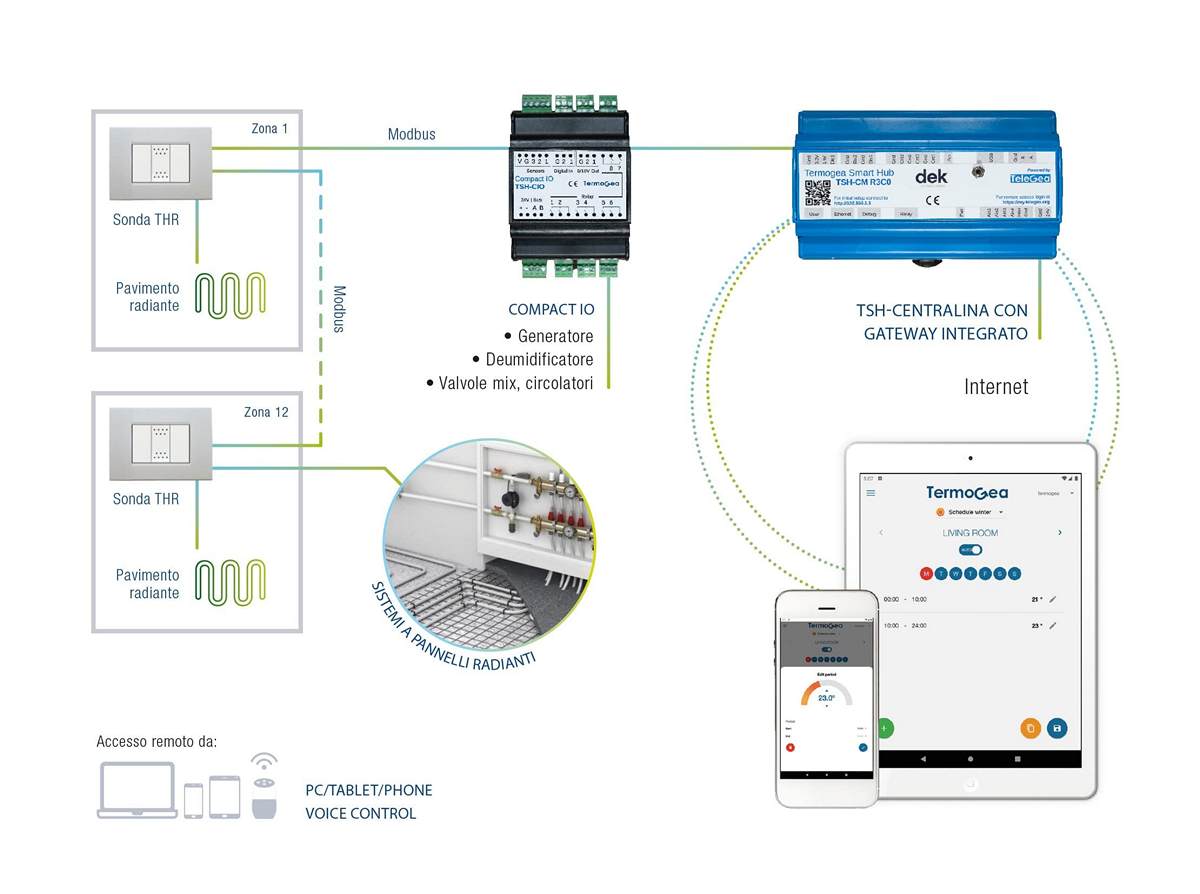

EASY RADIANT KIT
SMARTPHONE BASED CLIMATE CONTROL SYSTEM
Features
Termogea Smart Hub (TSH) climate control unit with integrated Ethernet gateway for cloud connection and Modbus interface.
Winter/Summer adjustment for radiant surfaces: floor, ceiling, or wall.
Control of the thermal power plant, dehumidifiers and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
T/H probes with relay (503) in the zones (controllable via Smartphone APP).
Management of up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| Compact I/O Module | CIOT | ||||
| Room probe TH with relè | SND-THRT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.
TOUCH RADIANT KIT
CENTRALIZED CLIMATE CONTROL SYSTEM WITH TOUCH PANEL AND SMARTPHONE
Features
Termogea Smart Touch (TST) centralized multi-zone 7-inch wall-mounted thermostat, equipped with Ethernet gateway for cloud connection and Modbus interface.
Winter/Summer adjustment for radiant surfaces: floor, ceiling, or wall.
Control of the thermal power plant, dehumidifiers, and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
T/H probes with relay (503) in the zones (controllable via Smartphone APP).
Management of up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Touch | TSTT | ||||
| Compact I/O Module | CIOT | ||||
| Room probe TH with relè | SND-THRT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.

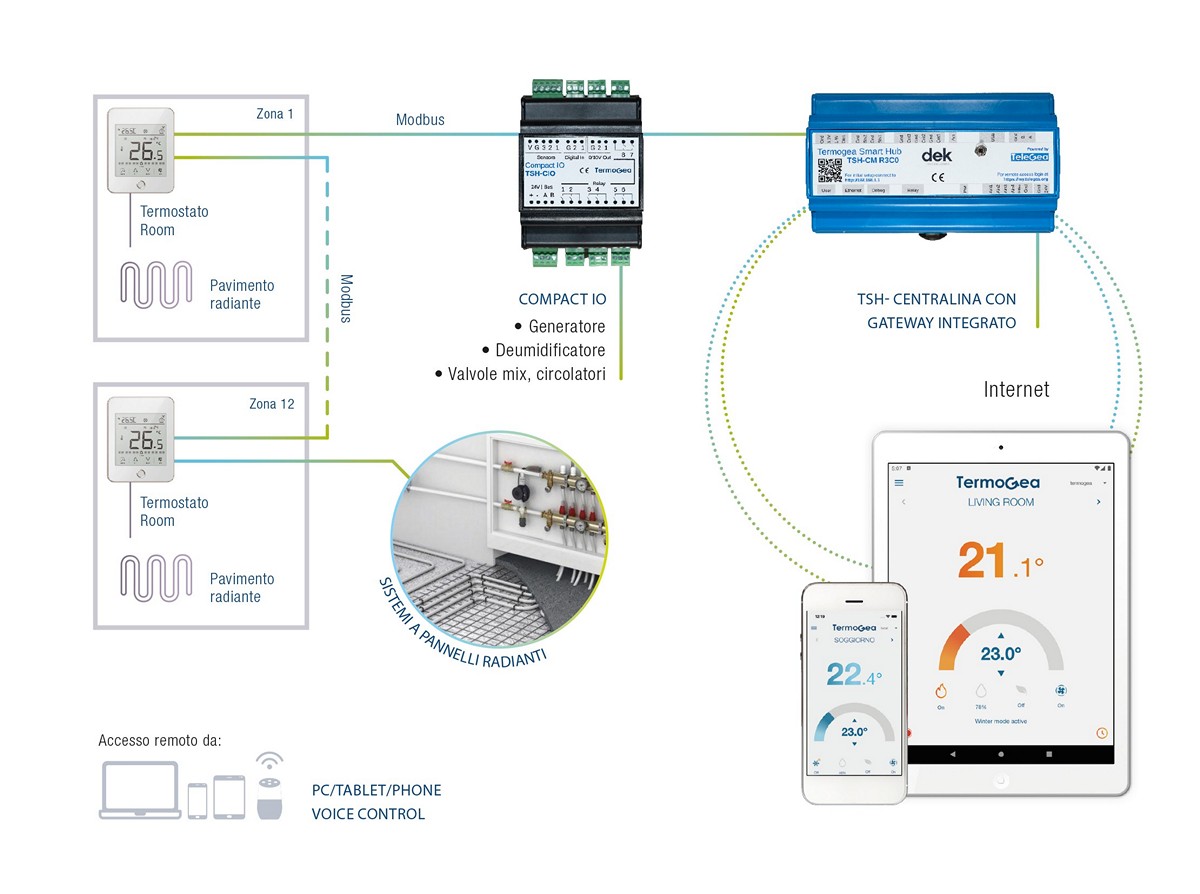

ROOM RADIANT KIT
CLIMATE CONTROL SYSTEM WITH ZONE THERMOSTAT AND SMARTPHONE
Features
Termogea Smart Hub (TSH) climate control unit with integrated Ethernet gateway for cloud connection and Modbus interface.
Winter/Summer regulation of radiant surfaces: floor, ceiling, or wall.
Control of the thermal power plant, dehumidifiers, and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Room thermostat for local control of a single zone (accessible via Smartphone APP).
Management of up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| Compact I/O Module | CIOT | ||||
| Room Thermostat | LCD-503V-TT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.
