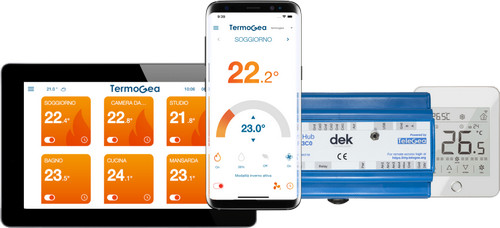

These Termogea kits offer three solutions for controlling temperature, humidity and air quality in mixed radiant and fan coil systems.
The user can control the radiant-fancoil system in three ways: with just a smartphone (Easy Solution), with a centralized thermostat + smartphone (Touch Solution), and with a zone thermostat + smartphone (Room Solution).

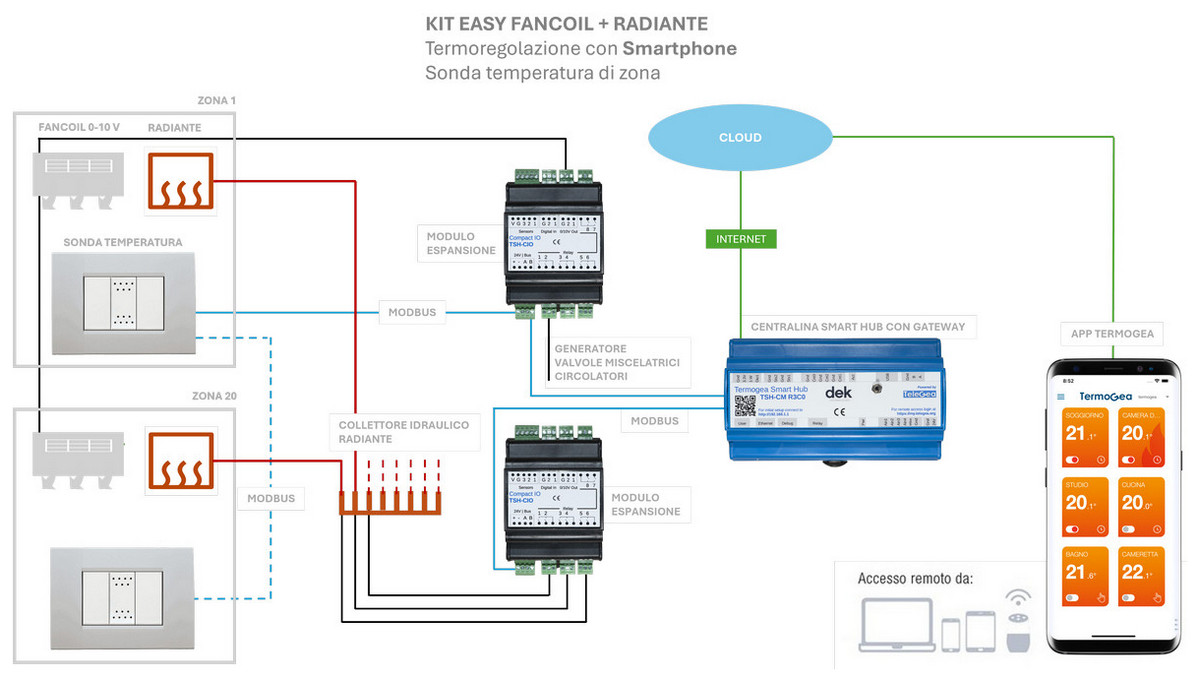

EASY RADIANT-FANCOIL KIT
SMARTPHONE BASED CLIMATE CONTROL SYSTEM
Features
Termogea Smart Hub (TSH) climate control unit with integrated Ethernet gateway for cloud connection and Modbus interface.
Direct digital control of summer air conditioning for fan coil units implementing the Modbus interface.
Control of radiant surfaces in winter (ceiling or wall) and fan coil in summer (inverter 0-10V or 3-speed).
Control of the thermal power plant (boiler or heat pump) and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Temperature and Humidity probes with relay (503) in the zones (controllable via Smartphone APP).
Up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCT | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| 4 Uscite Output 0-10V Module | ANU-4T | ||||
| Compact I/O Module | CIOT | ||||
| Temperature Humidity Room Probe with relè | SND-THRT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.

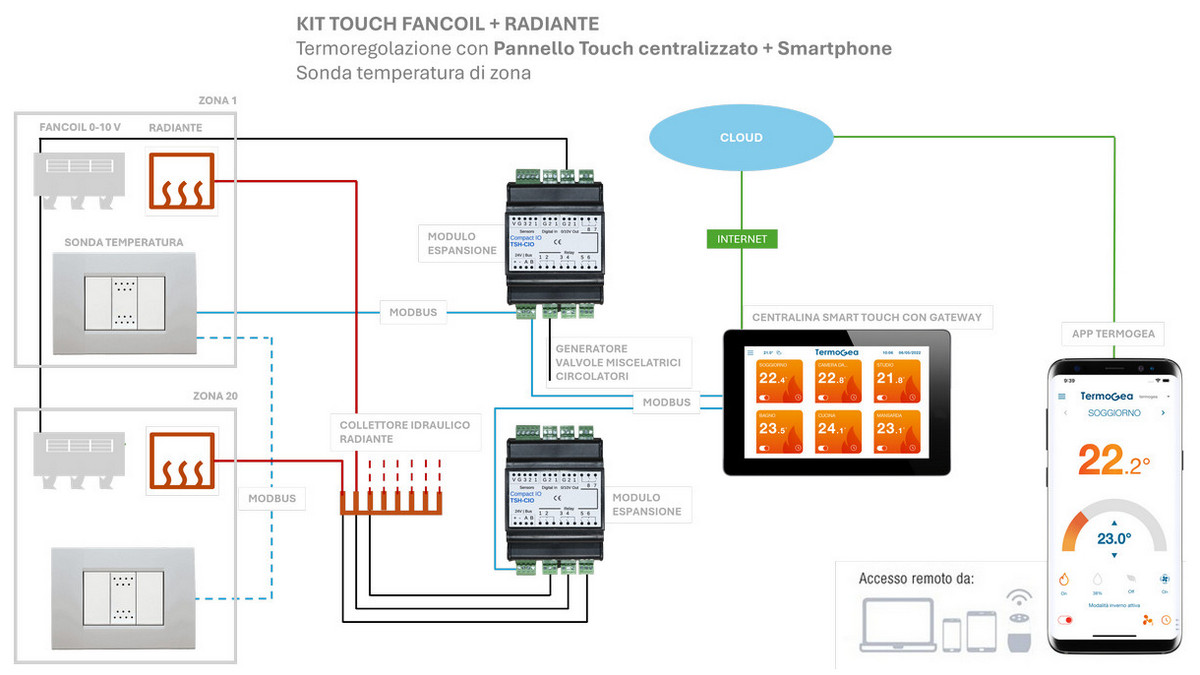

TOUCH RADIANT-FANCOIL KIT
CENTRALIZED CLIMATE CONTROL SYSTEM BY TOUCH PANEL AND SMARTPHONE
Features
Termogea Smart Touch (TST) centralized multi-zone 7-inch wall-mounted thermostat, equipped with Ethernet gateway for cloud connection and Modbus interface.
Control of radiant surfaces in winter (ceiling or wall) and fan coil in summer (inverter 0-10V or 3-speed).
Control of the thermal power plant (boiler or heat pump) and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Temperature and Humidity probes with relay (503) in the zones (controllable via Smartphone APP).
Up to 12 zones with a single control unit (TST), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Touch | TSTT | ||||
| 4 Output 0-10V Module | ANU-4T | ||||
| Compact I/O Module | CIOT | ||||
| Temperature Humidity Room Probe with relè | SND-THRT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.

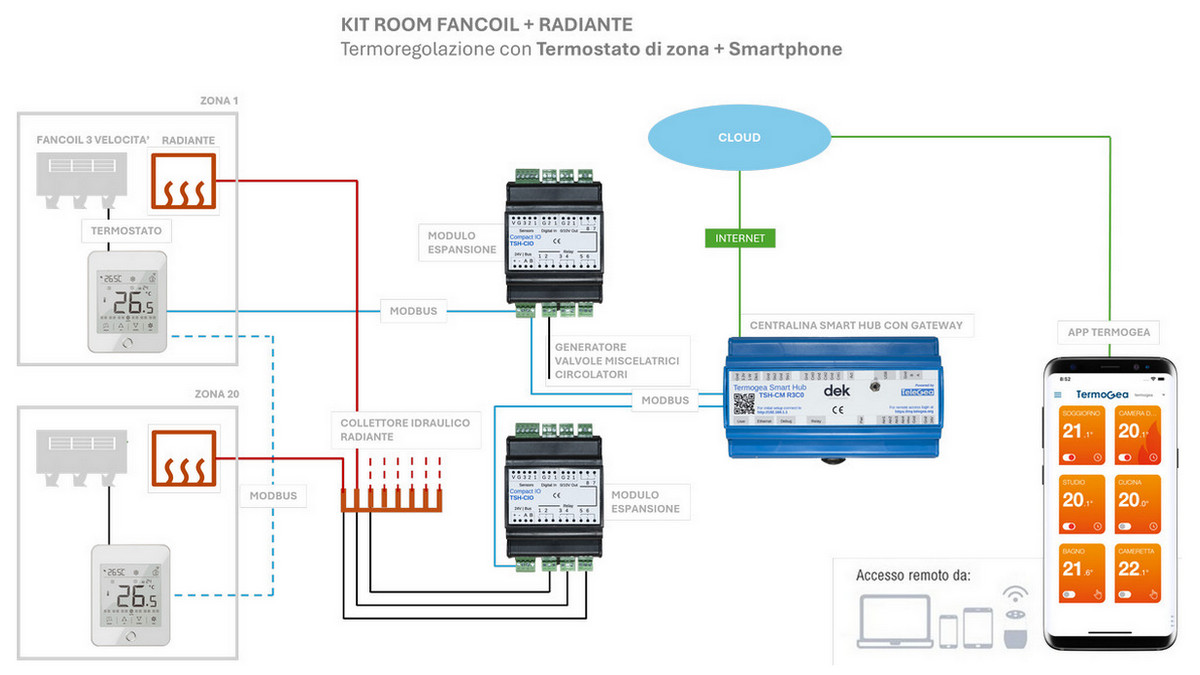

ROOM RADIANT-FANCOIL KIT
CLIMATE CONTROL SYSTEM WITH ZONE THERMOSTAT AND SMARTPHONE
Caratteristiche
Termogea Smart Hub (TSH) climate control unit with integrated Ethernet gateway for cloud connection and Modbus interface.
Direct digital control of summer air conditioning for fan coil units implementing the Modbus interface.
Control of radiant surfaces in winter (ceiling or wall) and fan coil in summer (inverter 0-10V or 3-speed).
Control of the thermal power plant (boiler or heat pump) and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Room thermostat for local control of a single zone (accessible via Smartphone APP).
Up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| Compact I/O Module | CIOT | ||||
| 4 Output 0-10V Module | ANU-4T | ||||
| Room Thermostat | LCD-503V-TT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.
