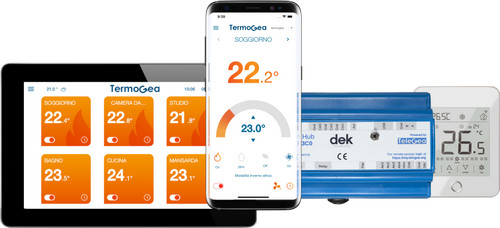

These Termogea kits offer three solutions for controlling temperature, humidity and air quality in mixed radiant and ducted fan coil systems.
The user can control the radiant-ducted fancoil system in three ways: with just a smartphone (Easy Solution), with a centralized thermostat + smartphone (Touch Solution), and with a zone thermostat + smartphone (Room Solution).
SINGLE CONTROL FOR RADIANT AND DUCTED FANCOIL SYSTEM
The new Termogea system allows you to easily manage radiant floors or ceilings in combination with ducted fan coils.
Two distribution systems, radiant and ducted fancoil, managed by a single Smartphone, by Centralized thermostat, and by zone thermostat.

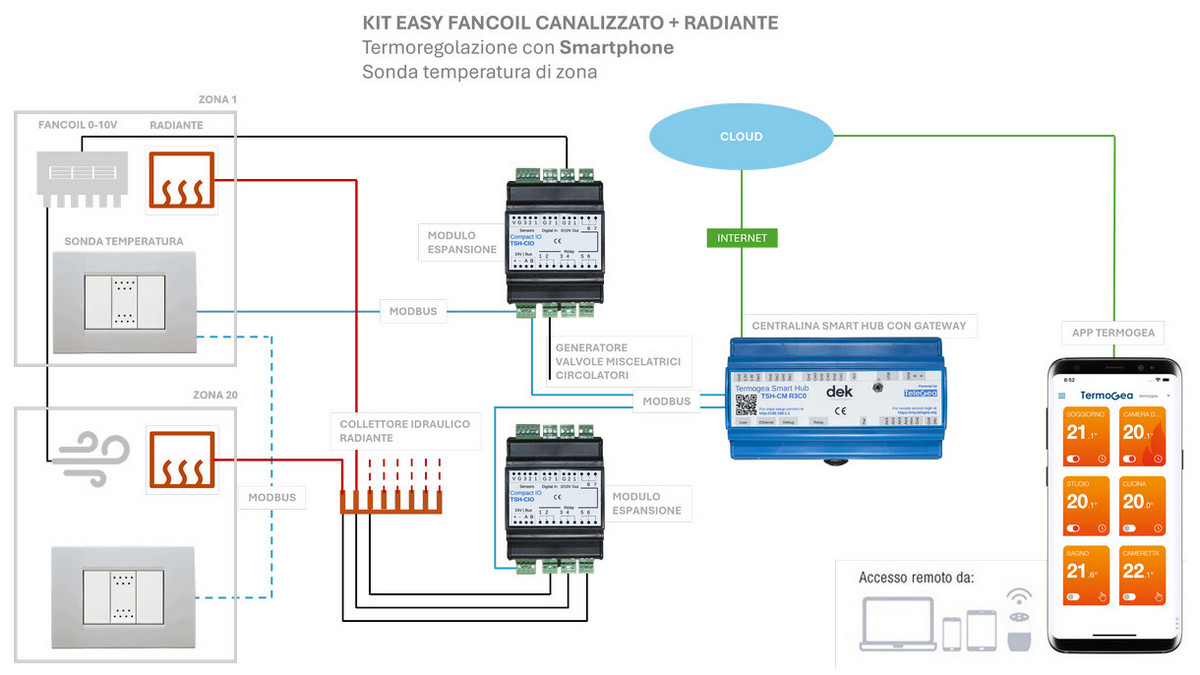

EASY RADIANT AND DUCTED FANCOIL KIT
SMARTPHONE BASED CLIMATE CONTROL SYSTEM
Features
Termogea Smart Hub (TSH) climate control unit with integrated Ethernet gateway for cloud connection and Modbus interface.
Direct digital control of summer air conditioning for fan coil units implementing the Modbus interface.
Control of radiant surfaces in winter (ceiling or wall) and fan coil in summer (inverter 0-10V or 3-speed).
Control of the thermal power plant (boiler or heat pump) and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Temperature and Humidity probes with relay (503) in the zones (controllable via Smartphone APP).
Up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| Compact I/O Module | CIOT | ||||
| Room Probes with relè | SND-THRT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.
TOUCH RADIANT AND DUCTED FAN COIL KIT
CENTRALIZED CONTROL SYSTEM WITH TOUCH PANEL AND REMOTE CONTROL WITH SMARTPHONE
Featured
Termogea Smart Touch (TST) centralized multi-zone 7-inch wall-mounted thermostat, equipped with Ethernet gateway for cloud connection and Modbus interface.
Direct digital control of summer air conditioning for fan coil units implementing the Modbus interface.
Control of radiant surfaces in winter (ceiling or wall) and fan coil in summer (inverter 0-10V or 3-speed).
Control of the thermal power plant (boiler or heat pump) and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Temperature and Humidity probes with relay (503) in the zones (controllable via Smartphone APP).
Up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Touch | TST | ||||
| Compact I/O Module | CIOT | ||||
| Temperature Humidity Room Probe with relè | SND-THRT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.

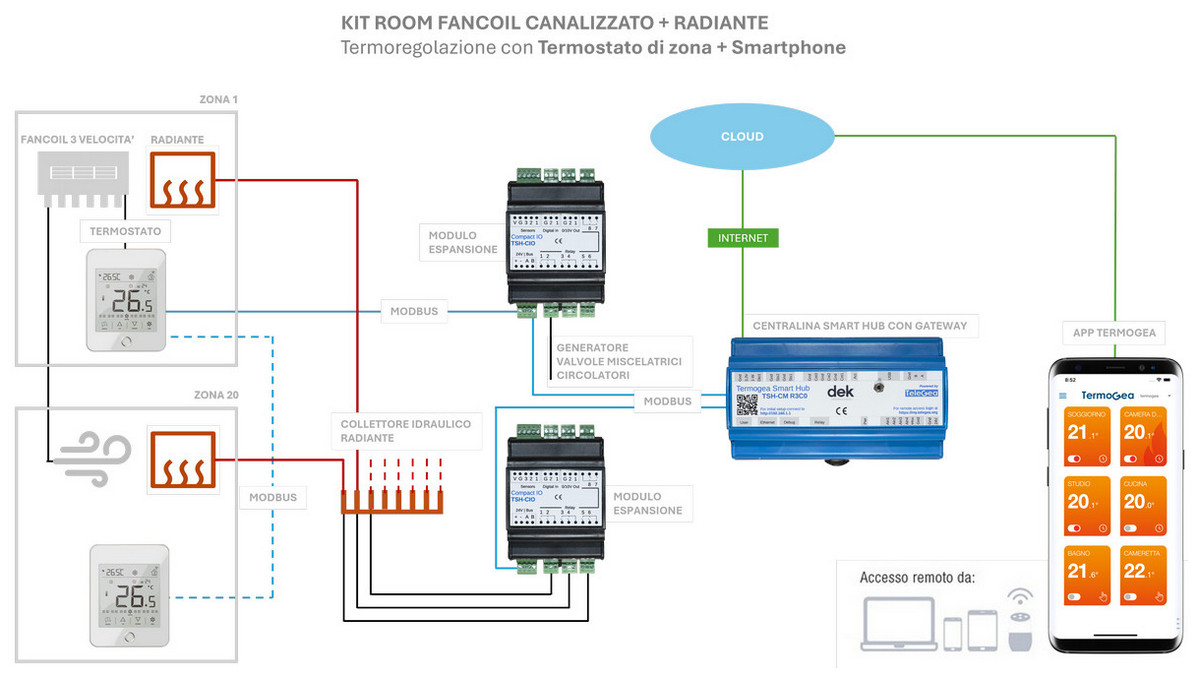

ROOM RADIANT AND DUCTED FANCOIL KIT
CLIMATE CONTROL SYSTEM WITH ZONE THERMOSTAT AND REMOTE CONTROL WITH SMARTPHONE
Featured
Termogea Smart Hub (TSH) climate control unit with integrated Ethernet gateway for cloud connection and Modbus interface.
Direct digital control of summer air conditioning for fan coil units implementing the Modbus interface.
Control of radiant surfaces in winter (ceiling or wall) and fan coil in summer (inverter 0-10V or 3-speed).
Control of the thermal power plant (boiler or heat pump) and mixing valves (three-point or 0-10V).
Management of Controlled Mechanical Ventilation units (CMV).
Temperature and Humidity probes with relay (503) in the zones (controllable via Smartphone APP).
Room thermostat for local control of a single zone (accessible via Smartphone APP).
Up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| Compact I/O Module | CIOT | ||||
| Room Thermostat | LCD-503V-TT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.
