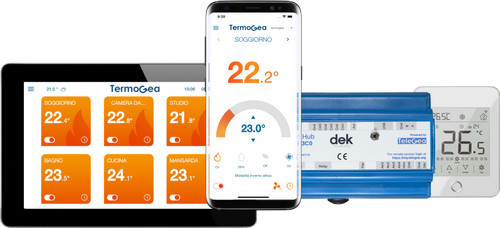

These Termogea kits offer three solutions for controlling temperature, humidity and air quality in fan coil systems.
The user can control the fan coil system in three ways: with just a smartphone (Easy Solution), with a centralized thermostat + smartphone (Touch Solution), and with a zone thermostat + smartphone (Room Solution).

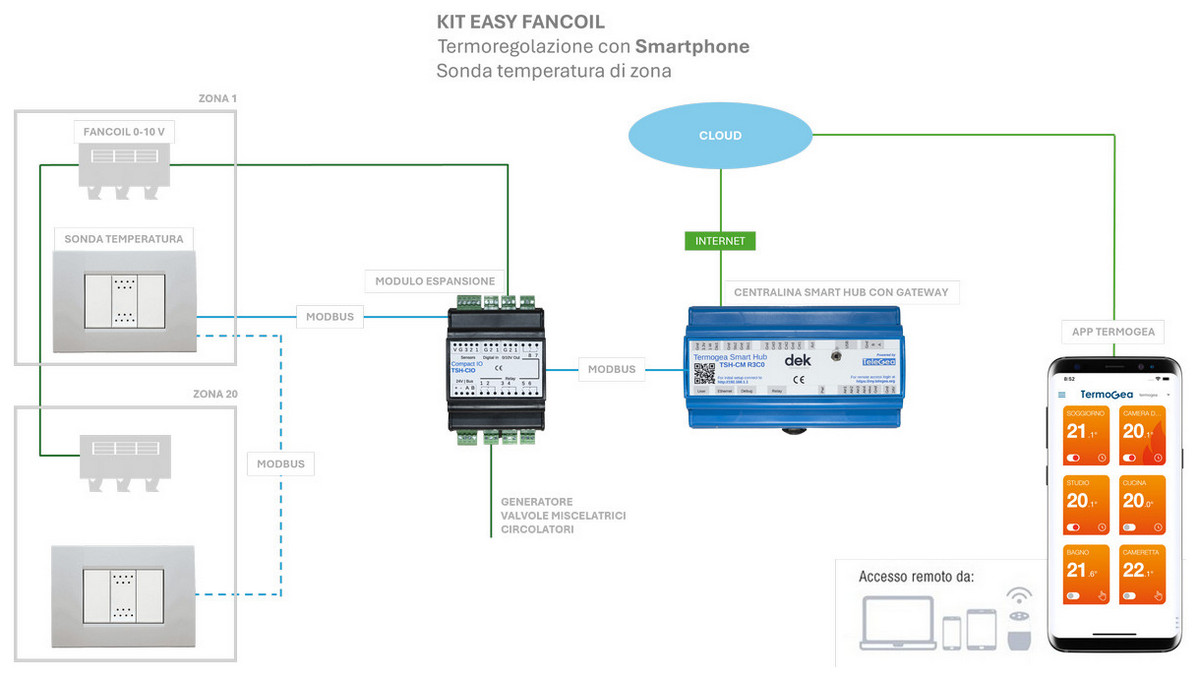

EASY FANCOIL KIT
SMARTPHONE BASED CLIMATE CONTROL SYSTEM
Features:
- Climate control unit with integrated gateway (TSH) for cloud connection.
- Winter/Summer control for inverter fan coils 0-10V (or 3 speeds).
- Direct digital Winter/Summer control for fan coil units implementing the Modbus interface.
- Control of Thermal Power Plant (boiler or heat pump) and mixing valves (three points or 0-10V).
- Control of Controlled Mechanical Ventilation (CMV) units.
- Temperature/Humidity sensors (503 box) in zones (controllable via Smartphone APP).
- Up to 12 zones with a single controller (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| 4 Output 0-10V Module | ANU-4T | ||||
| Compact I/O Module | CIOT | ||||
| Temperature and Humidity Probe (Box 503) | SND-THT | ||||
| Power Supply DR-30-24, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.

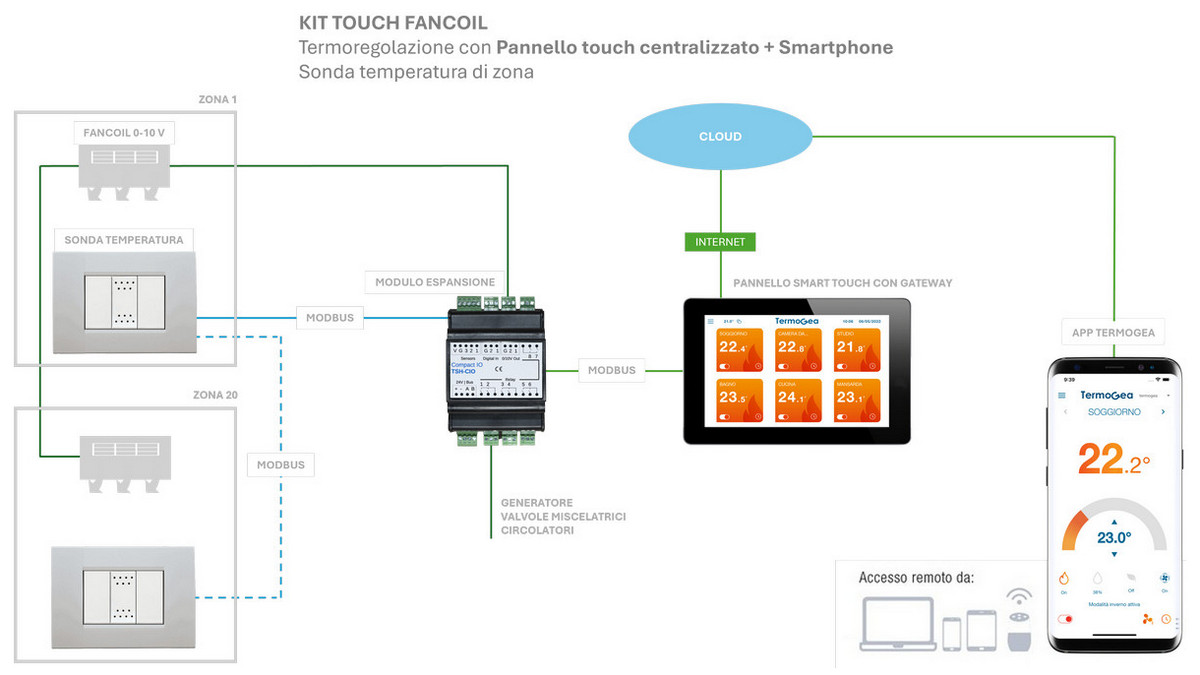

TOUCH FANCOIL KIT
CENTRALIZED CLIMATE CONTROL SYSTEM WITH TOUCH PANEL AND SMARTPHONE
Features:
- Touch screen wall-mounted 7-inch for multi-zone control with integrated gateway.
- Winter/Summer control of inverter fan coils 0-10V (or 3-speed).
- Direct digital Winter/Summer control for fan coil units implementing the Modbus interface.
- Control of Thermal Power Plant (boiler or heat pump) and mixing valves (three points or 0-10V).
- Control of Controlled Mechanical Ventilation units (CMV).
- Temperature/Humidity sensors (503 box) in the zones (controllable via Smartphone APP).
- Up to 12 zones with a single regulator (TST), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Touch | TSTT | ||||
| 4 Output 0-10V Module | ANU-4T | ||||
| Compact I/O Module | CIOT | ||||
| Temperature and Humidty Probe (Box 503) | SND-THT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.

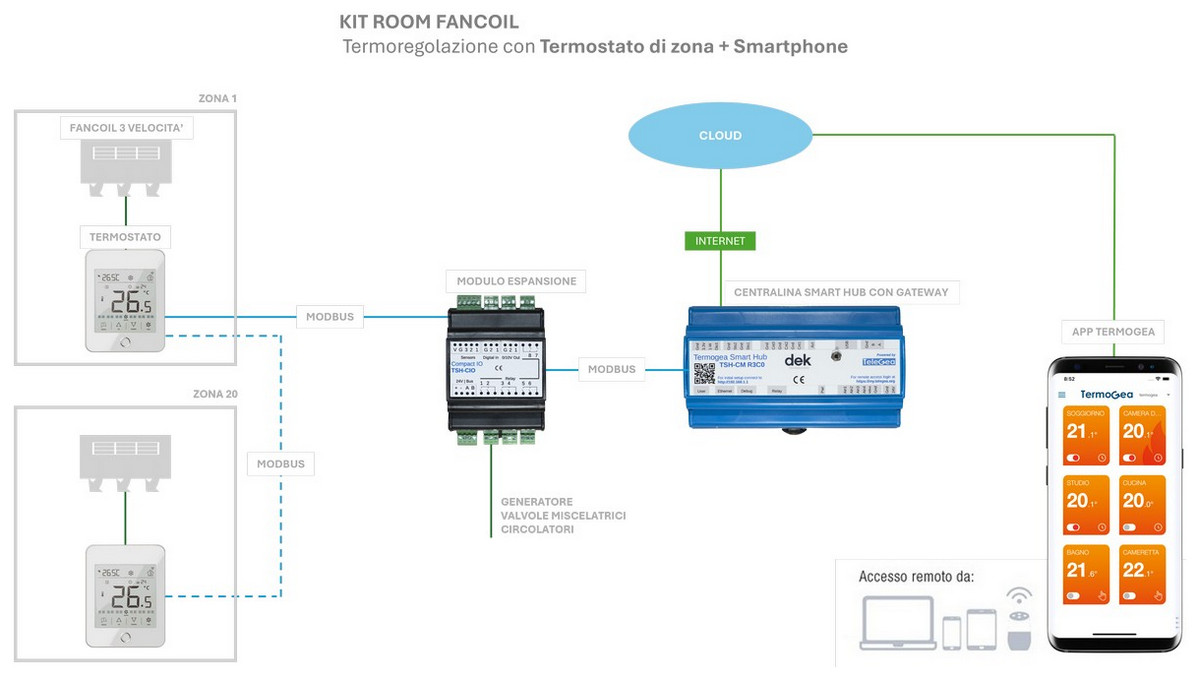

ROOM FANCOIL KIT
CLIMATE CONTROL SYSTEM WITH ZONE THERMOSTAT AND SMARTPHONE
Featurs:
- Climate control unit with integrated gateway (TSH) for cloud connection.
- Winter/Summer control of inverter fan coil 0-10V or 3-speed.
- Direct digital Winter/Summer control for fan coil units implementing the Modbus interface.
- Control of Thermal Power Plant (boiler or heat pump) and mixing valves (three points or 0-10V).
- Control of Controlled Mechanical Ventilation units (CMV).
- Room thermostat for local control of a single zone (accessible via Smartphone APP).
- Up to 12 zones with a single control unit (TSH), up to 20 zones with the TSH EVO version.
| PRODUCTS | CODE | ||||
|---|---|---|---|---|---|
| Termogea Smart Hub Basic | TSHT | ||||
| Compact I/O Module | CIOT | ||||
| 4 Output 0-10V Module | ANU-4T | ||||
| Room Thermostat | LCD-503V-TT | ||||
| Power Supply DR-30-24V, 30W | PWR-24DC-30WT |
* Up to 20 zones with the TSH EVO version.
