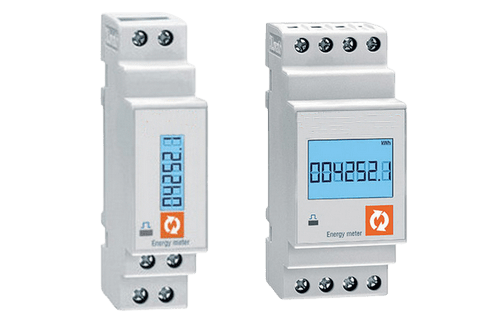

SINGLE PHASE AND THREE PHASE KW COUNTER (code CNT-KWH)

ELECTRICAL ENERGY METER

Single-phase and three-phase digital energy meters with display, expandable and non-expandable.
Direct Connection 40A, 63A e 80A., 220…240V AC.

Electrical nergy meters - Single-phase and three-phase kilowatt counter
KW-COUNTERCODEDESCRIPTION
KW-counter single phaseCNT-KWHkWatt Counter no MID
KW-counter single phase MIDCNT-KWH-MIDkWatt Counter cert. MID
KW-counter three phaseCNT-TRFkWatt Counter no MID
KW-counter three phase MIDCNT-TRF-MIDkWatt Counter cert. MID
Thermal energy meter - Heat and cooling counter

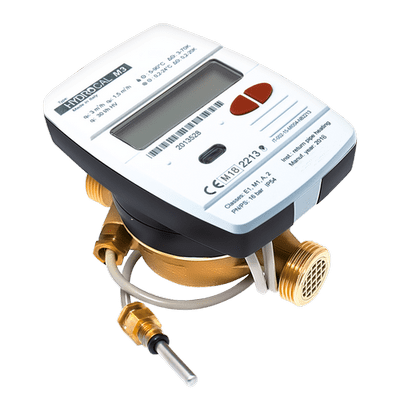

0,6 THERMAL ENERGY METER (code HYDRO)

COMPACT THERMAL ENERGY METER

Compact thermal energy meter for measuring the energy used for heating and/or cooling in users served by centralized systems.

The processing of the data relating to the difference between the temperature of the delivery fluid and the return fluid (DT), combined with the data relating to the volume of thermo-carrier fluid used by each user, allows the exact calculation of the amount of energy used.

Approved according to MID 2004/22/CE MI004 and EN1434 standard.

THERMAL ENERGY METERSCODEDESCRIPTION
0,6 Thermal energy metersHYDRO-0.6HYDROCAL-M3 0,6. Compact thermal energy meter.
1.5 Thermal energy metersHYDRO-1.5HYDROCAL-M3 1,5. Compact thermal energy meter.
2.5 Thermal energy metersHYDRO-2.5HYDROCAL-M3 2,5. Compact thermal energy meter.

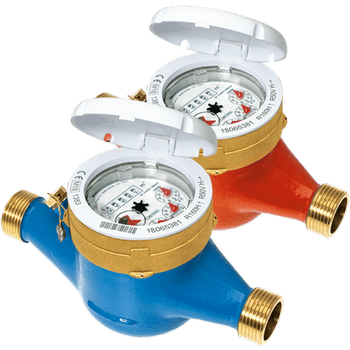

LITER COUNTER (code CNT-WAT)

WATER METER WITH DRY DIAL

Multi-jet counter, dry dial, magnetic transmission with 360° rotating lid.
Version for cold water (50° C) and hot water (90° C).
Inductive predisposition for the installation of wired M-BUS data transmission modules, OMS wireless and non-magnetic pulse launchers.

Water meter - Remote reading water meter
LITER COUNTERCODEDESCRIPTION
Liter counter 1/2" - 145 - AFCNT-WAT 1/2" - 145 - AFWater meter with dry dial GMDM-I 1/2"-145 AF
Liter counter 1/2" - 165 - AFCNT-WAT 1/2" - 165 - AFWater meter with dry dial GMDM-I 1/2"-165 AF
Liter counter 1/2" - 190 - AFCNT-WAT 1/2" - 190 - AFWater meter with dry dial GMDM-I 1/2"-190 AF
Liter counter 3/4" AFCNT-WAT 3/4" AFWater meter with dry dial GMDM-I 3/4" AF
Liter counter 1" - AFCNT-WAT 1" - AFWater meter with dry dial GMDM-I 1" AF
Liter counter 1"1/4 - AFCNT-WAT 1"1/4 - AFWater meter with dry dial GMDM-I 1"1/4 AF
Liter counter 1"1/2 - AFCNT-WAT 1"1/2 - AFWater meter with dry dial GMDM-I 1"1/2 AF
Liter counter 2" - AF - FILCNT-WAT 2" - AF - FILWater meter with dry dial GMDM-I 2" AF Filettato
Liter counter 2" - AF - FLACNT-WAT 2" - AF - FLAWater meter with dry dial GMDM-I 2" AF Flangiato
Liter counter 1/2" - ACCNT-WAT 1/2" - ACWater meter with dry dial GMDM-I 1/2"-165 AC
Liter counter 3/4" - ACCNT-WAT 3/4" - ACWater meter with dry dial GMDM-I 3/4" AC
Liter counter 1"- ACCNT-WAT 1"- ACWater meter with dry dial GMDM-I 1" AC
Liter counter 1"1/4 - ACCNT-WAT 1"1/4 - ACWater meter with dry dial GMDM-I 1"1/4 AC
Liter counter 1"1/2 - ACCNT-WAT 1"1/2 - ACWater meter with dry dial GMDM-I 1"1/2 AC
Liter counter 2" - AC - FILCNT-WAT 2" - AC - FILWater meter with dry dial GMDM-I 2" AC Filettato
Liter counter 2" - AC - FLACNT-WAT 2" - AC - FLAWater meter with dry dial GMDM-I 2" AC Flangiato
Pulses launcher module remote reading of energy consumption

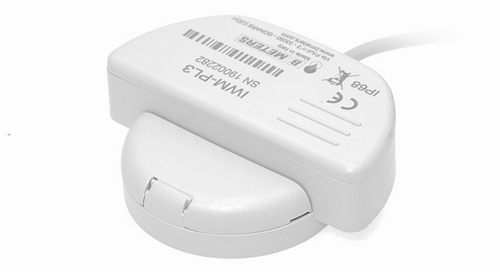

PULSES LAUNCHER MODULE (code PULSE-MOD)

IWM-PL3 MODEL

The IWM-PL3 model is suitable for numerous applications for remote reading in residential, commercial and industrial environments. This module is an electronic pulse launcher that allows to acquire the meter consumption by third-party systems using a universal interface. The module integrates advanced counting and fraud detection functions.

The use of an inductive target in the meter excludes the possibility of magnetic fraud and makes the application insensitive to the vibrations of the pipes.

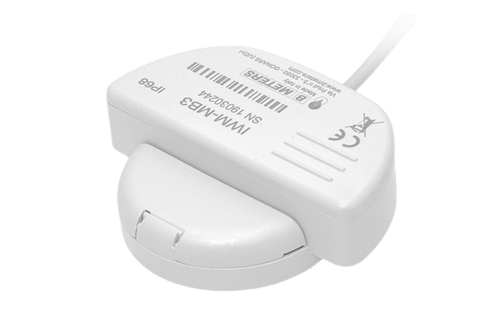

M-BUS MODULE (code MBUS-MOD)

IWM-MB3 MODEL

The IWM-MB3 model is suitable for applications for remote reading in residential, commercial and industrial contexts. The M-BUS module allows the acquisition of consumption data using the standard cable M-BUS protocol, historically developed for the remote reading of meters.

The use of an inductive target in the meter quadrant excludes the possibility of magnetic fraud and makes the application insensitive to the vibrations of the pipes.

M-BUS pulse launcher module remote reading of energy consumption
Energy counter - Energy metering module

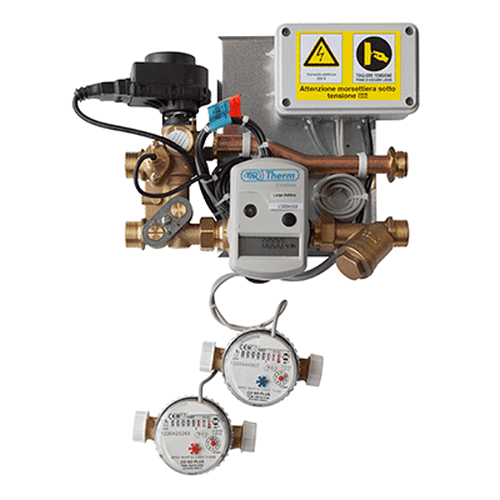

MINI MODULE (code MINI)

ENERGY METERING MODULE

Module for the metering of thermal, cooling and domestic hot/cold water. MAX recommended flow rate 1.0 m3/h.

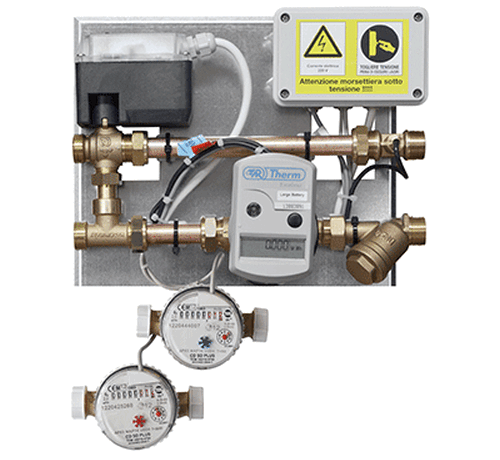

NOVAS MODULE (code NOVAS)

ENERGY METERING MODULE

Module for the metering of thermal, cooling and domestic hot/cold water. MAX recommended flow rate 1.2 m3/h.

Energy metering module for heat, cooling and water consumption
M-BUS Level converter

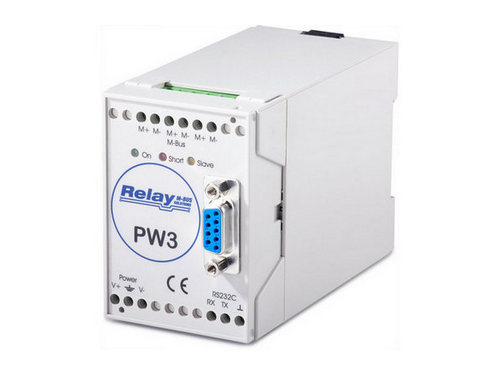

M-BUS LEVEL CONVERTER-3 (code MBUS-CONV-3)

LEVEL CONVERTER FOR 3 DEVICES WITH RS232C (PW3)

Features

  • Integrated RS232C-Interface (PC as master).
  • Optional optical interface (laptop / handheld as temporary master).
  • Max. 3 slaves (standard loads with 1,5mA).
  • External power supply 9-24V DC or AC.
  • Baudrates: 300 to 9600 Baud.
  • Overcurrent and short-circuit protection on the M-Bus.
  • Display for power, data transmission and short-circuit.
  • Rail or wall mounting.
M-BUS LEVEL CONVERTERCODICEDESCRIZIONE
M-BUS Level converter - 3MBUS-CONV-3M-Bus level converter for 3 devices with RS232C (PW3)
M-BUS Level converter - 20MBUS-CONV-20M-Bus level converter for 20 devices with RS232C (PW20)
M-BUS Level converter - 60MBUS-CONV-60M-Bus level converter for 60 devices with RS232C (PW60)
